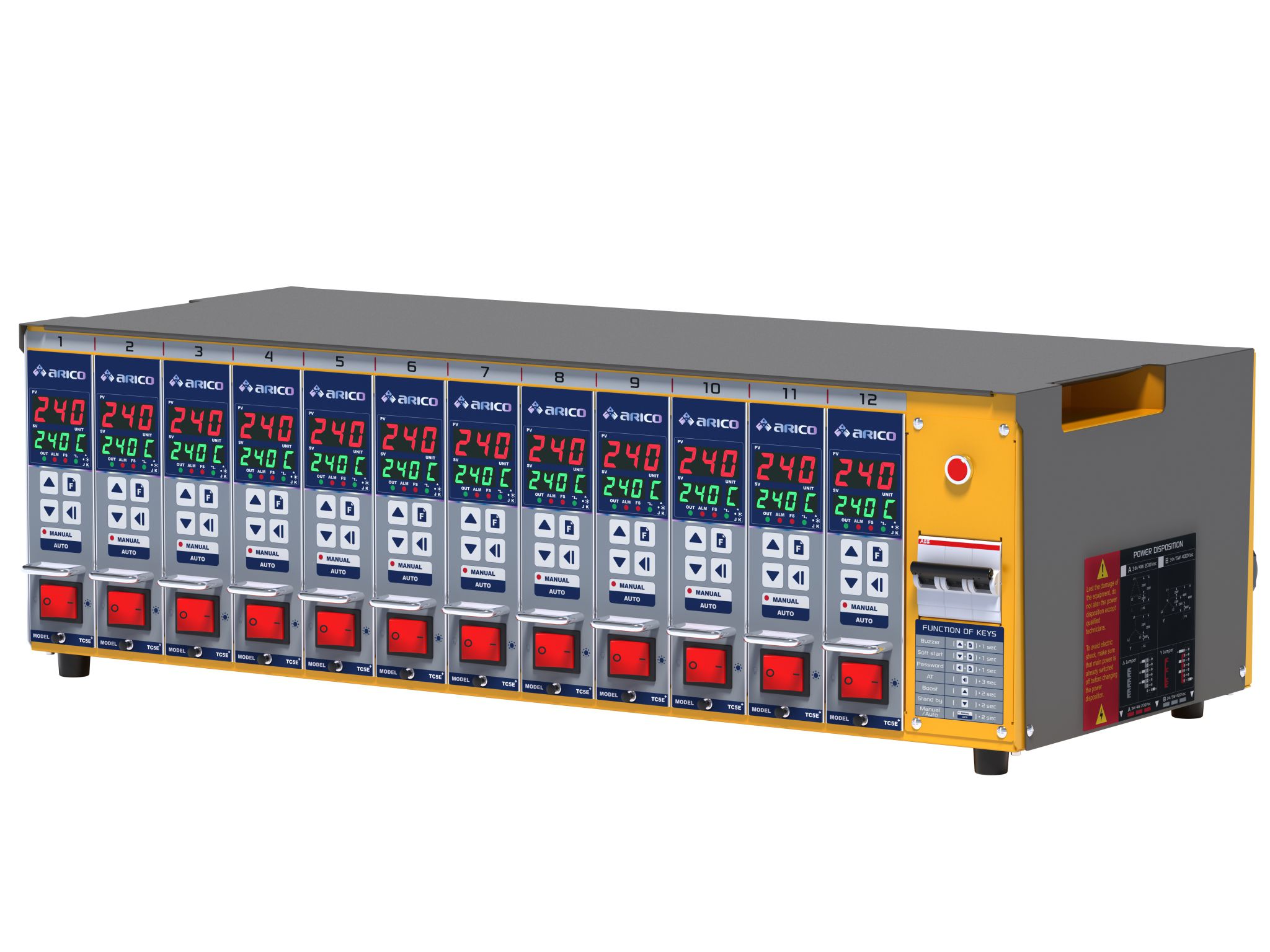

TC5E Plus Hot Runner Temperature Controllers
Overview

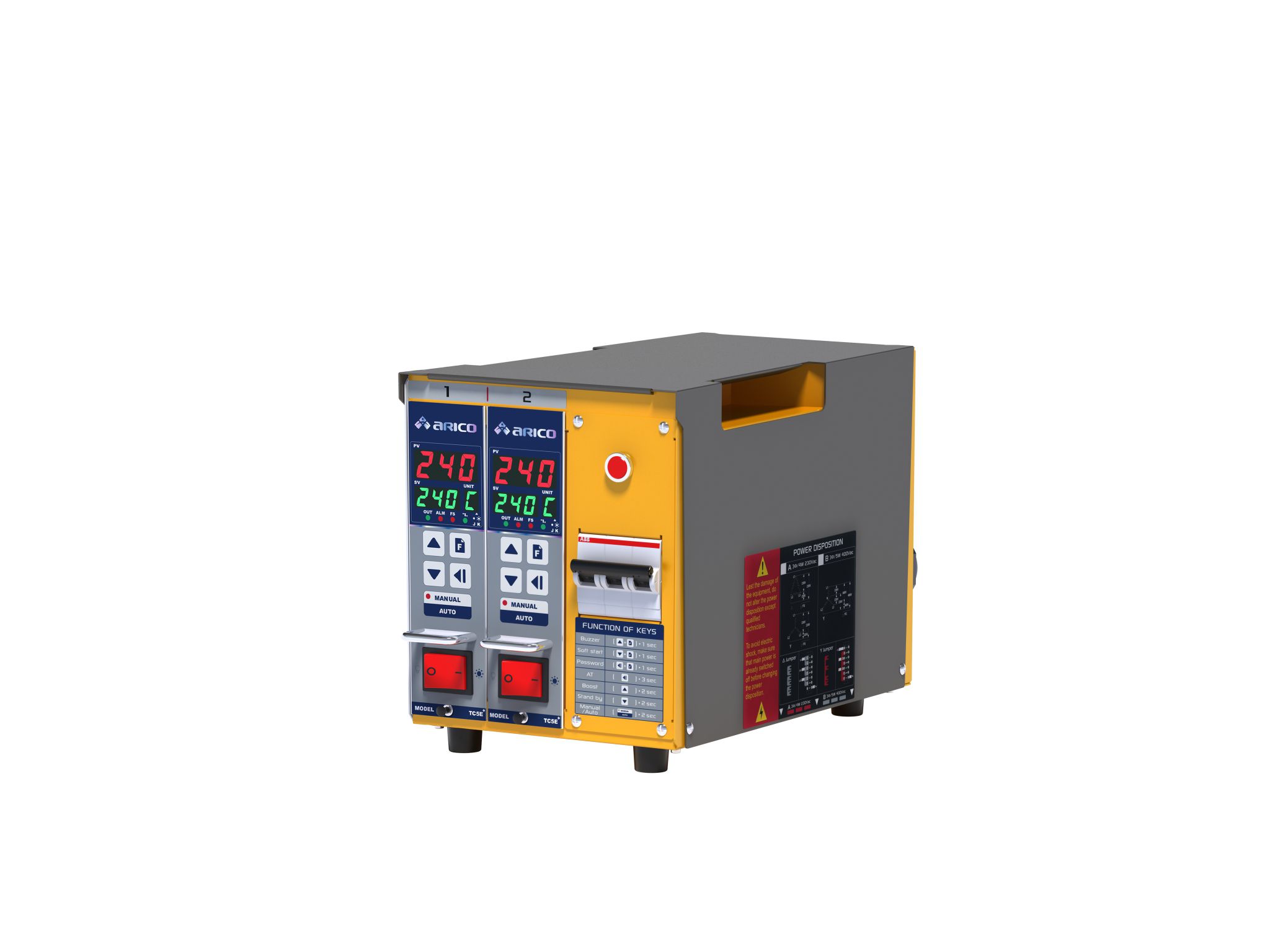

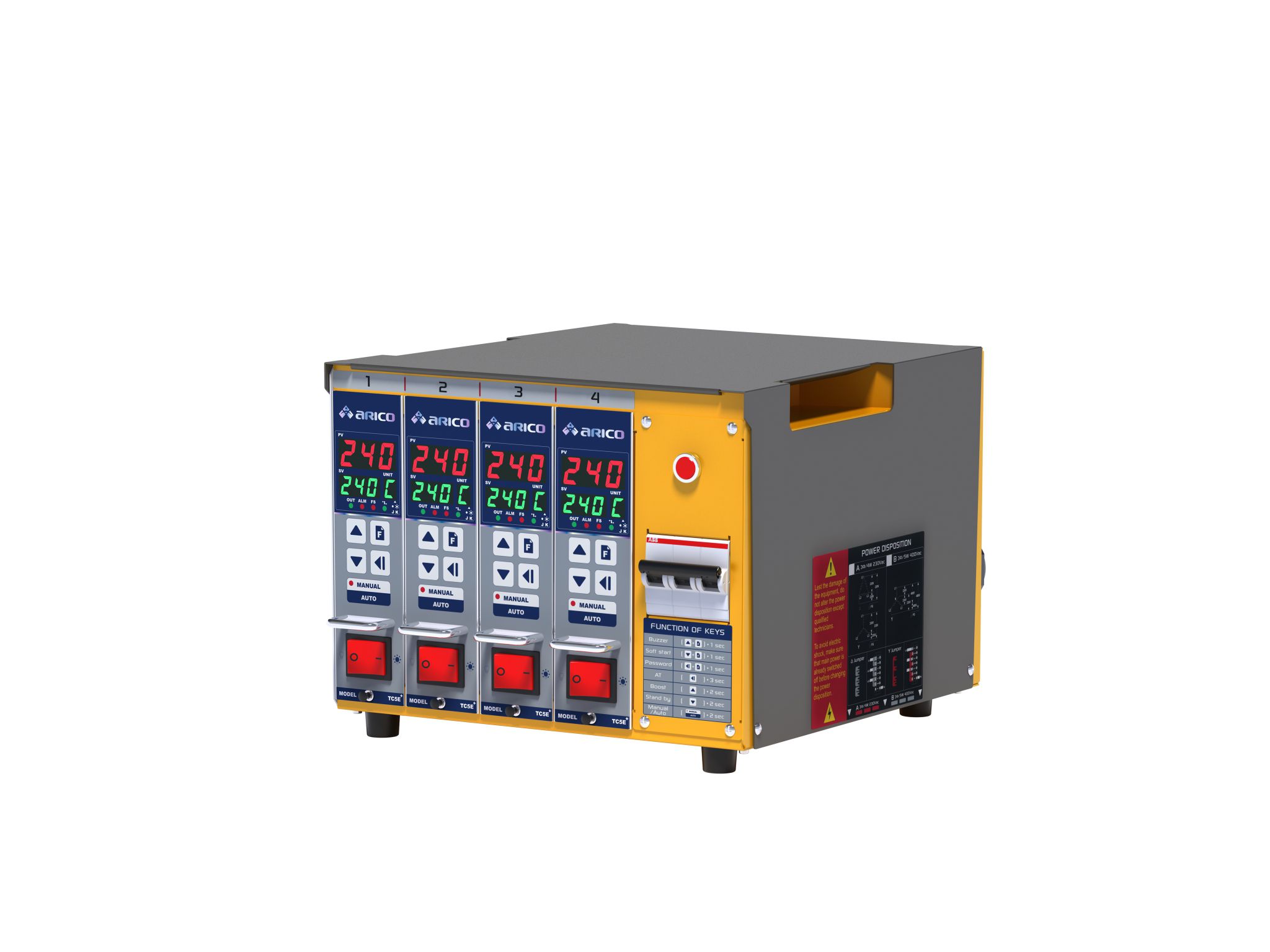

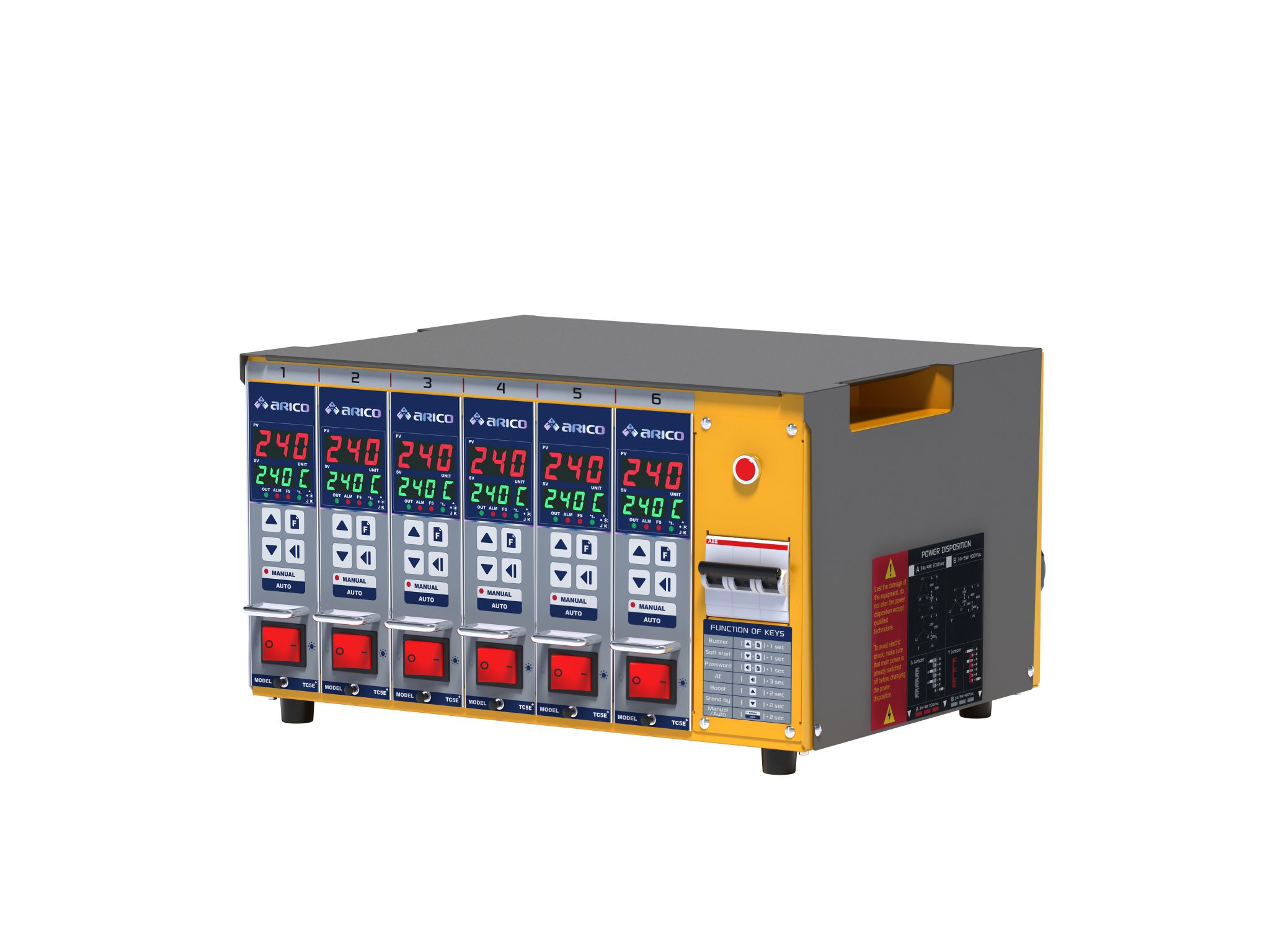

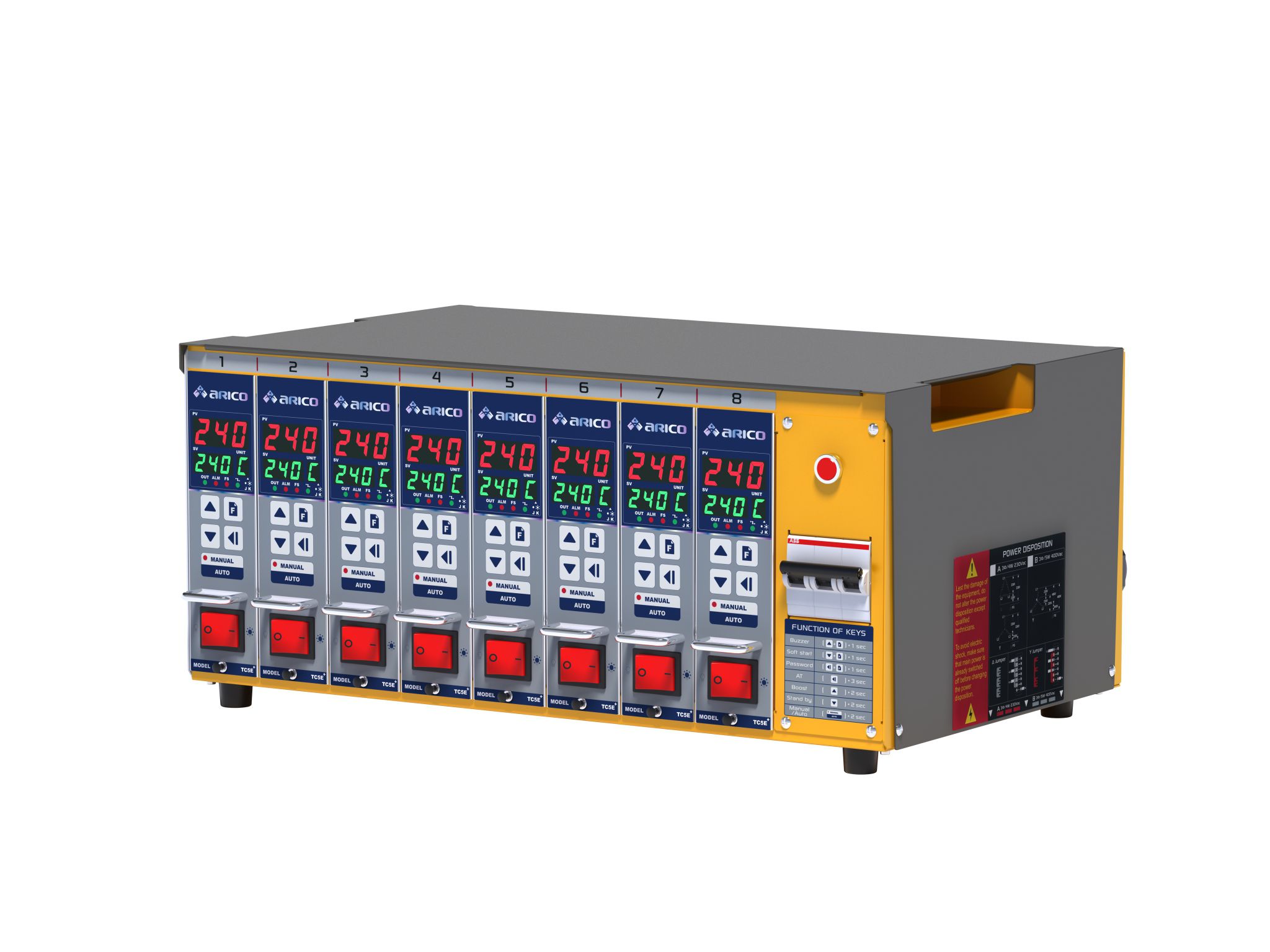

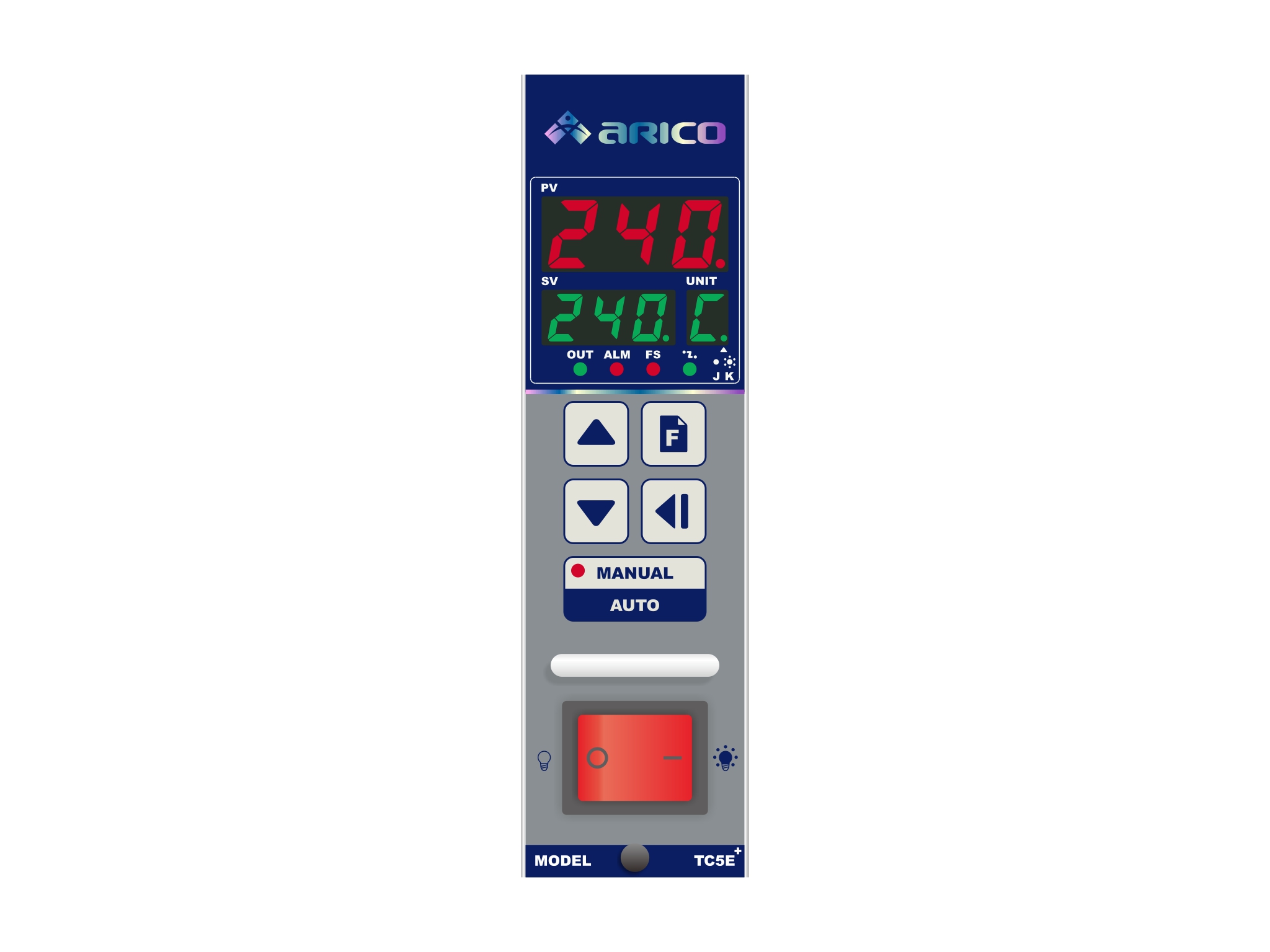

- Dual-row seven-segment display for clear and easy reading; built-in NFB switch ensures power safety.
- Supports absolute value alarm and intelligent soft-start, ensuring stable operation and extending equipment life.
- One-touch start/stop - hold and heat design for intuitive and fast operation, with quick 230V/380V voltage input switching, suitable for various applications.
| TC5E Plus | Module |
|
Number of Zones per Module |
1 zone |
|
Max. Current per Zone |
15A |
|
Input Power |
230Vac±10%, 50/60Hz |
|
Input Thermocouple Type |
J/K type |
|
Power Consumption |
230Vac: 3W |
|
Output Power |
3450W, 230Vac/15A(per zone) |
|
Output Mode |
Zero cross/Phase angle |
|
Control Accuracy |
±0.25% FS |
|
Measurement Accuracy |
±0.25% FS |
|
Temperature Control Range |
0~600°C/32~999°F |
|
Storage Temperature |
-20~70°C/-4~158°F |
|
Operating Temperature |
-10~50°C/14~122°F |
|
Operating Humidity |
0~80% RH(no condensate) |
|
Communication Mode |
RS-485(standard MODBUS)optional |
|
Communication Speed |
9600/19200/38400/57600/115200 |
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
|
Detection Functions |
Current/Fuse open-circuit/TRIAC Short-Circuit Detection |

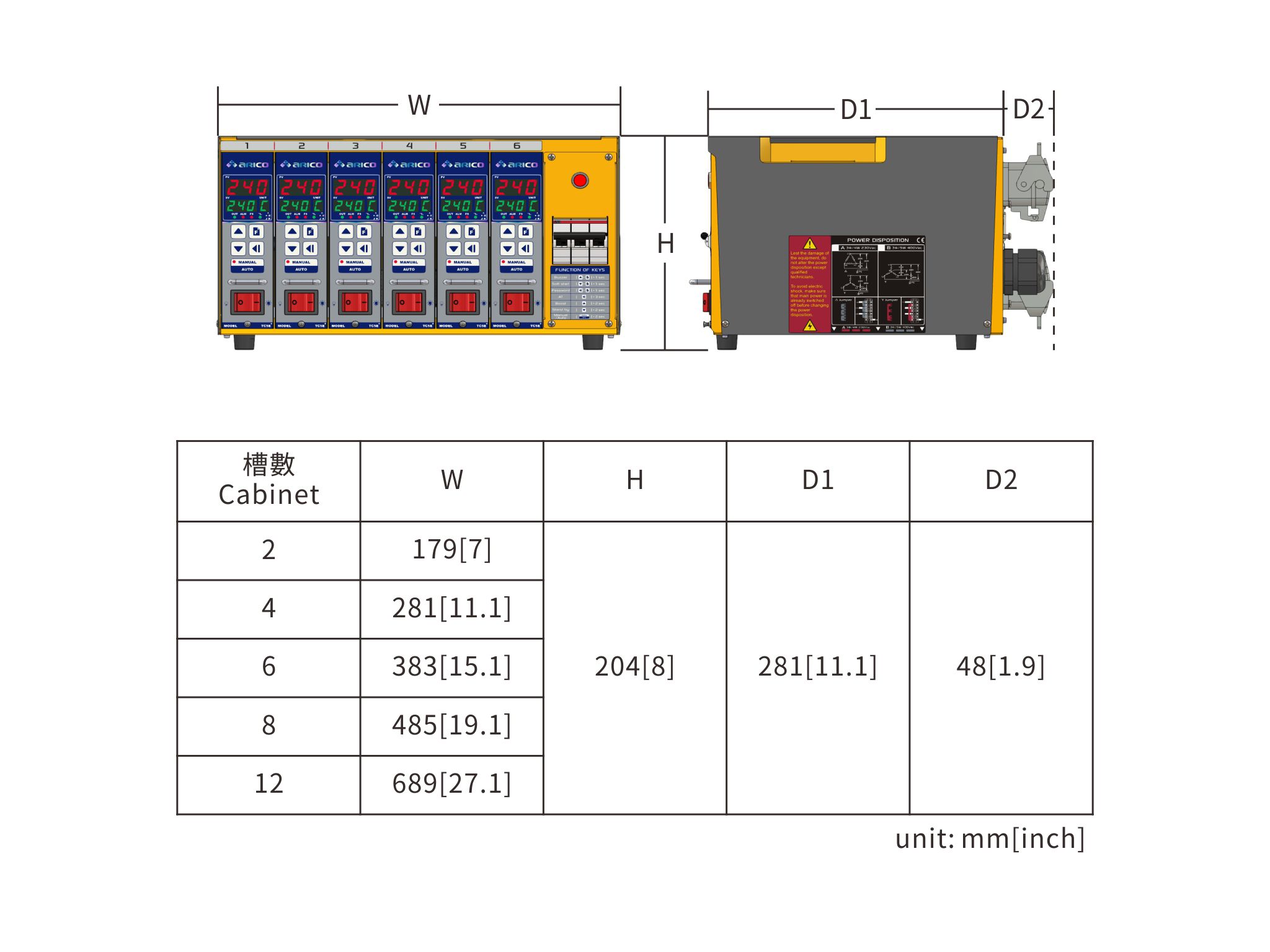

| Specs/Model | TC5T |
TC5H |
TC5E Plus |
TC5E |
|
Number of Zones per Module |
2 zones |
1 zone |
||
|
Max. Current per Zone |
15A |
|||
|
Input Power |
230Vac±10%, 50/60Hz |
|||
|
Input Thermocouple Type |
J/K type |
|||
|
Power Consumption |
230Vac: 3W |
|||
|
Output Power |
3450W, 230Vac/15A(per zone) |
|||
|
Output Mode |
Zero cross/Phase angle |
|||
|
Control Accuracy |
±0.25% FS |
|||
|
Measurement Accuracy |
±0.25% FS |
|||
|
Temperature Control Range |
0~600°C/32~999°F |
|||
|
Storage Temperature |
-20~70°C/-4~158°F |
|||
|
Operating Temperature |
-10~50°C/14~122°F |
|||
|
Operating Humidity |
0~80% RH(no condensate) |
|||
|
Communication Mode |
RS-485(standard MODBUS)optional |
× |
||
|
Communication Speed |
9600/19200/38400/57600/115200 |
× |
||
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
Ceramic fuse |
||
|
Detection Functions |
Current/Fuse open-circuit/TRIAC Short-Circuit Detection |
Fuse open-circuit |
||
Hot Runner Temperature Controller FAQ(TC5E Plus)
Q1: What are the core advantages of the TC5E Plus over the standard version?
A1: While maintaining a 1-zone-per-module setup, it adds Communication Mode and advanced diagnostics, including current monitoring, fuse-break, and TRIAC short-circuit detection.
Q2: How can heater damage be effectively prevented?
A2: The entire series comes standard with a Soft Start function. During the initial startup phase, it utilizes pulse power delivery to eliminate moisture and mitigate inrush current, effectively extending the heater's operational lifespan.
Q3: What is the maintenance procedure if a module malfunction occurs?
A3: The entire series features a plug-in module design. Maintenance personnel only need to remove and replace the faulty module while the power is off. This process requires no rewiring, minimizing downtime.
Q4: What is the alert mechanism for the TC5E Plus?
A4: It provides high-level hardware diagnostics. Similar to the E series, the buzzer is optional, allowing for flexible integration into various factory alarm environments.
